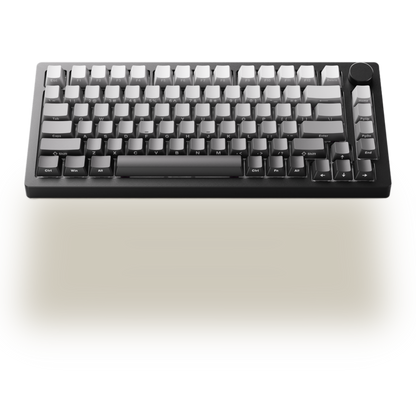

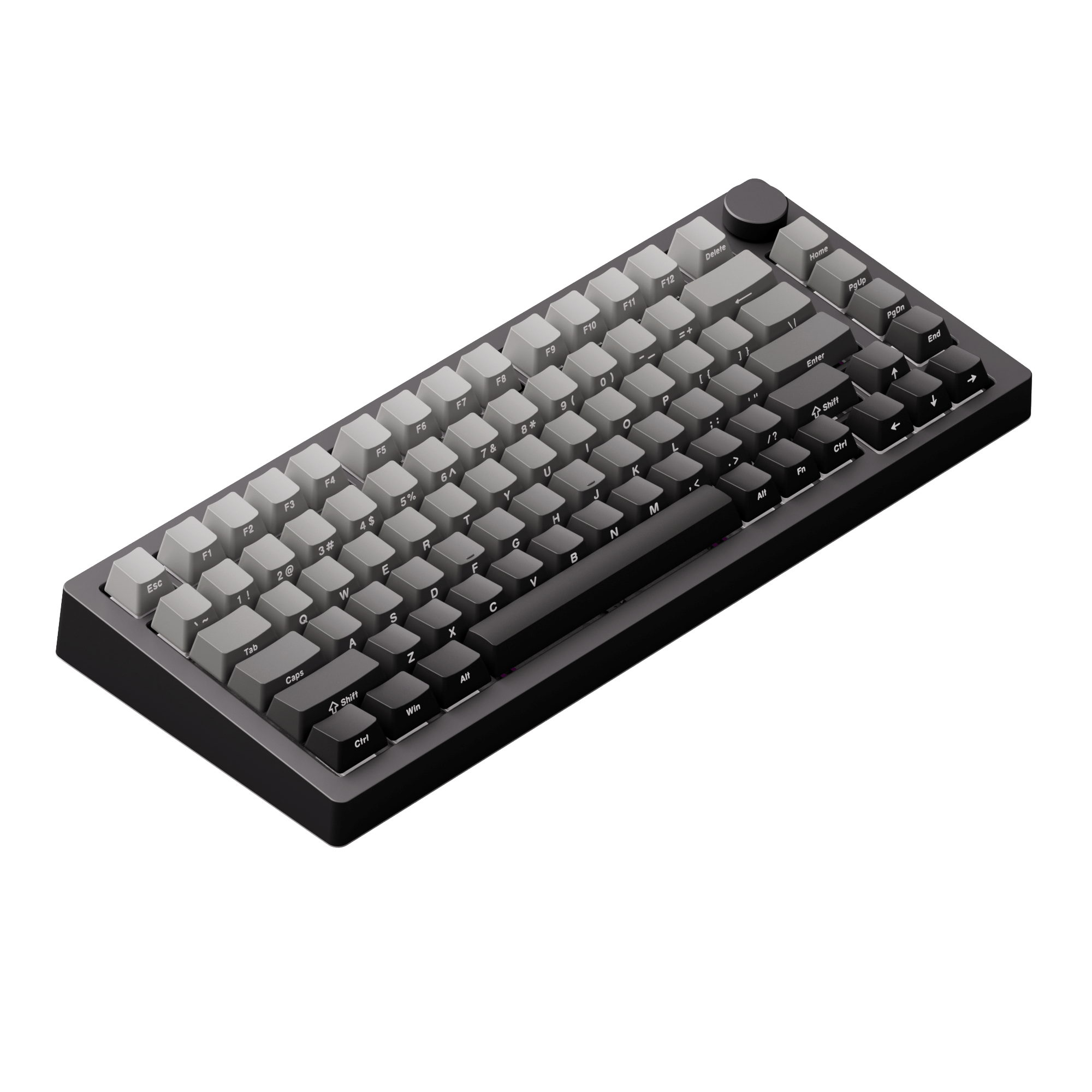

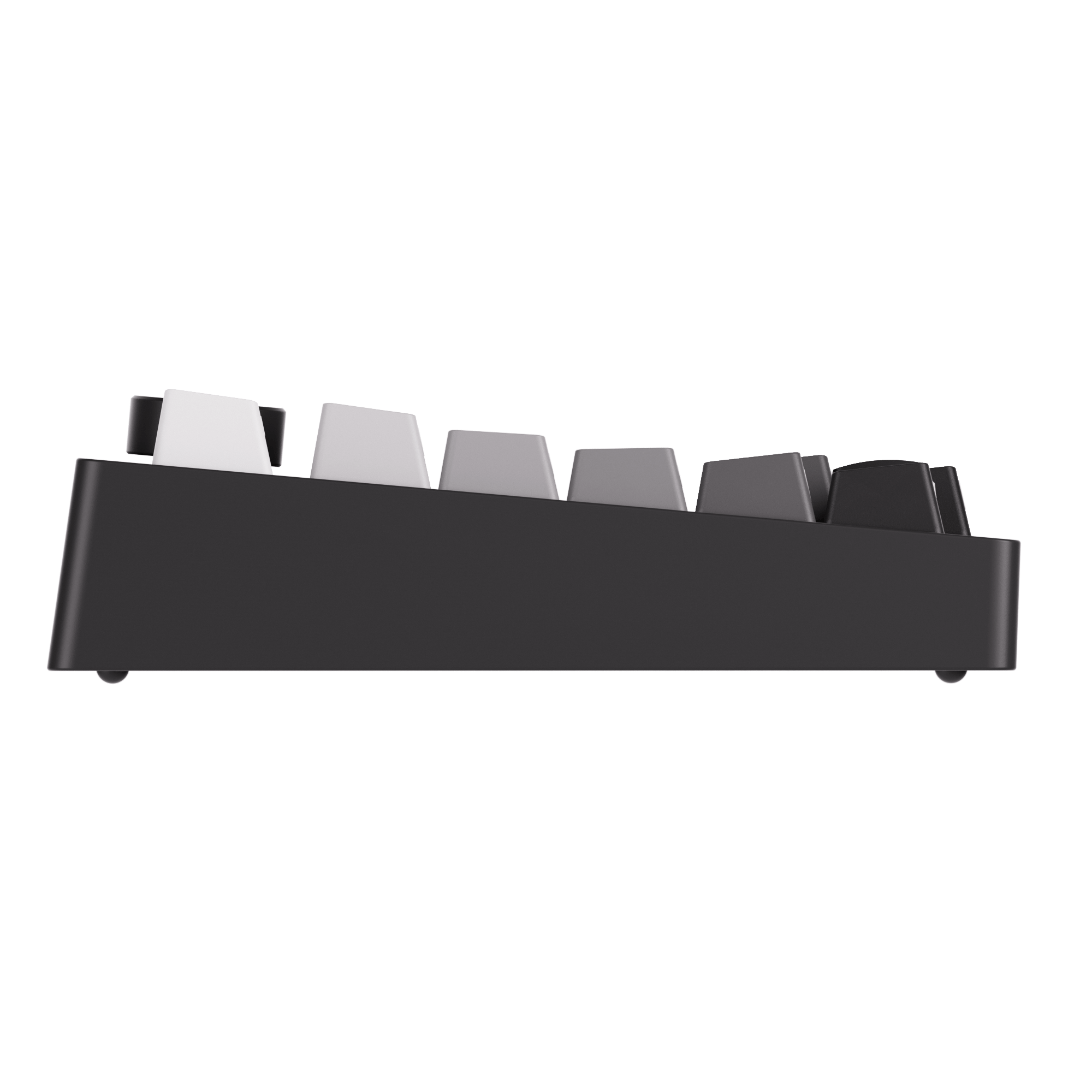

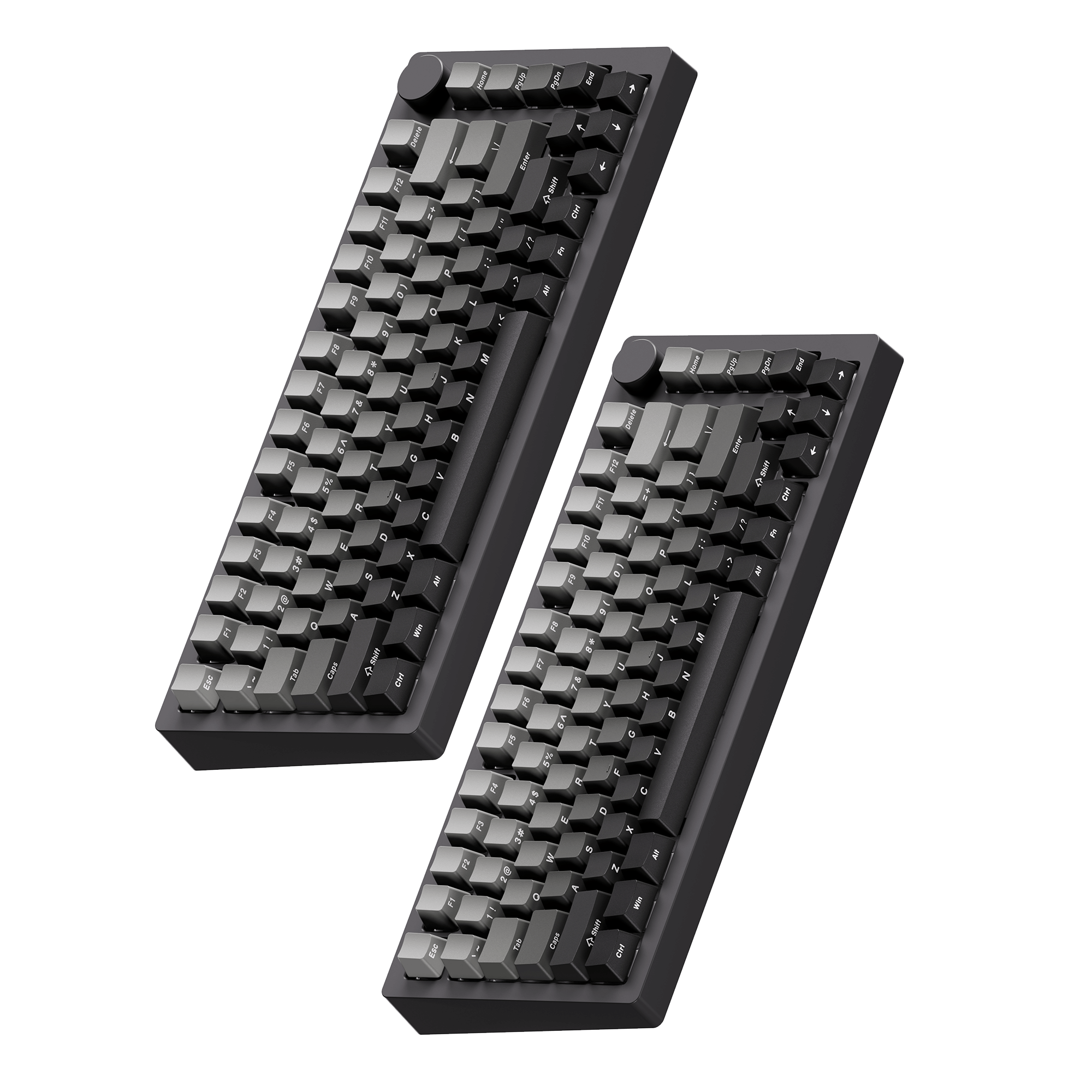

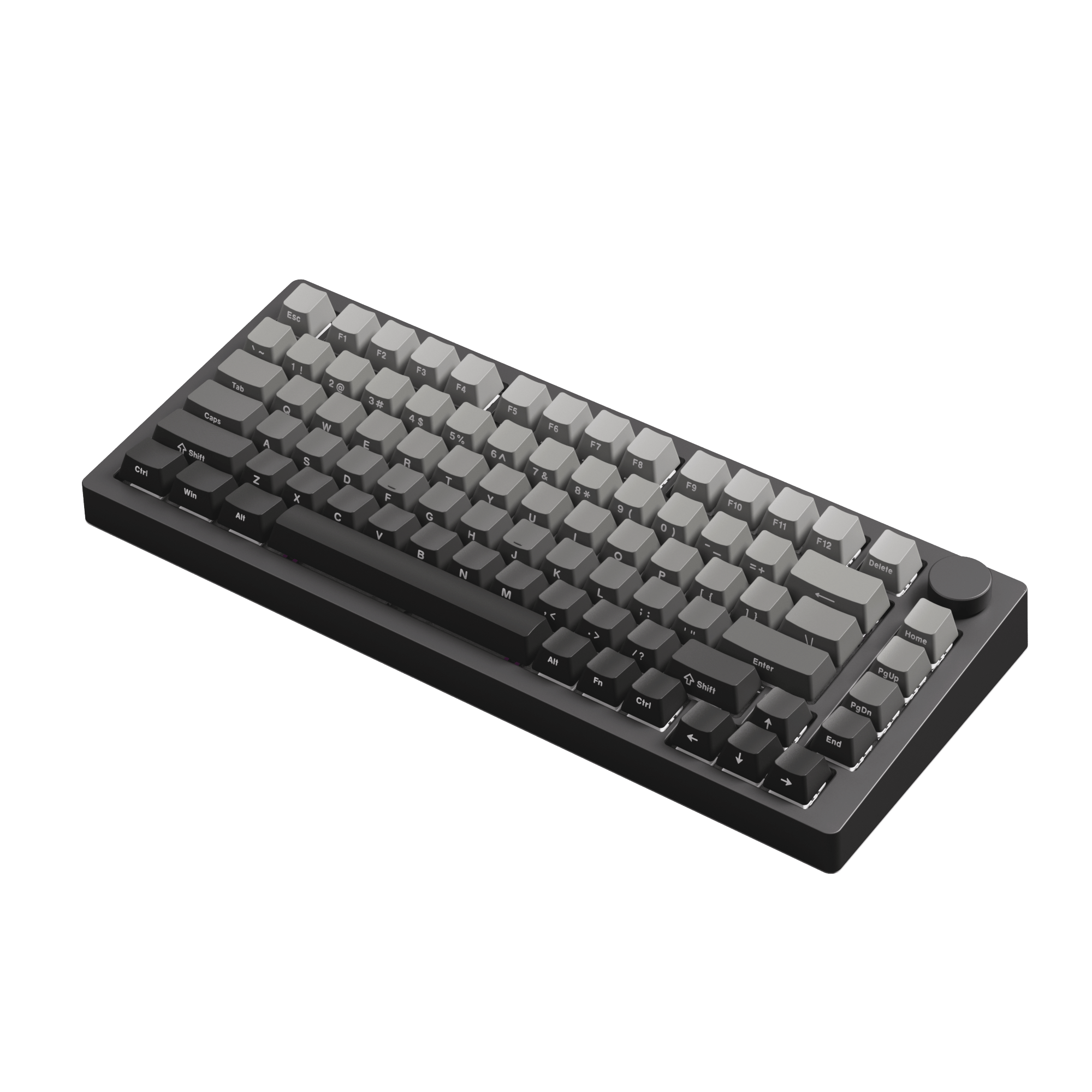

MONSGEEK M1 V5 TMR - BLACK GRADIENT

MonsGeek M1 V5 TMR Magnetic Keyboard — Black Gradient

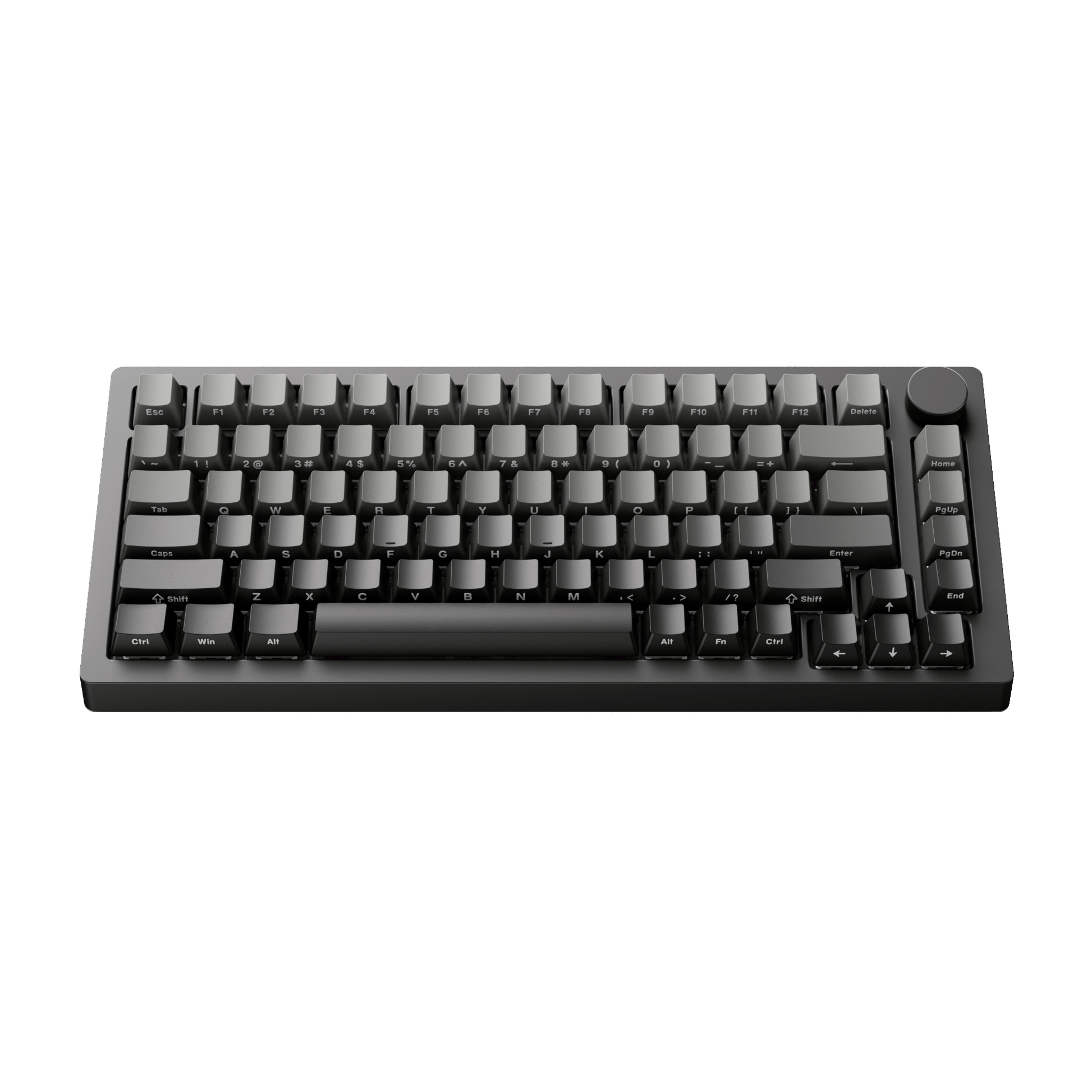

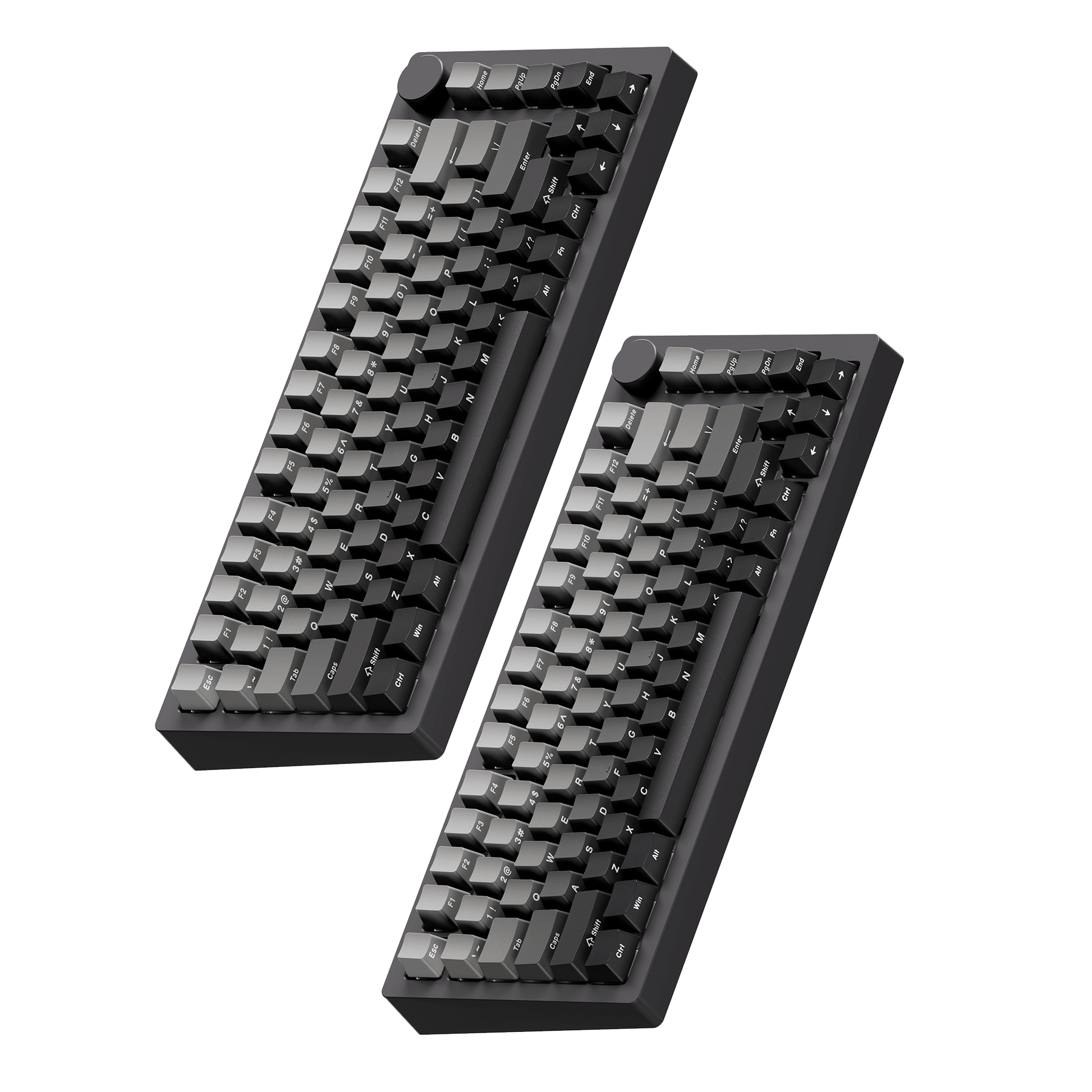

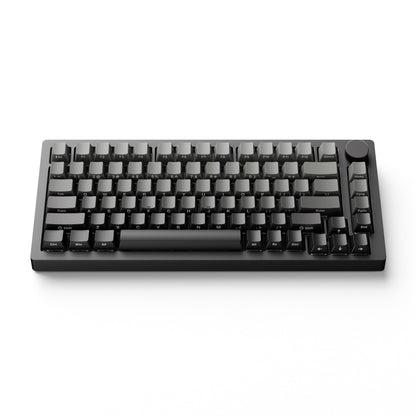

The MonsGeek M1 V5 TMR is the ultimate hybrid gaming keyboard, combining TMR sensor technology with full MagMech compatibility — use magnetic switches, mechanical switches, or mix them freely. Featuring a 75% layout in an elegant gray-to-black gradient aluminum CNC case with tool-free ball-catch rapid disassembly.

This listing is for the Black Gradient (US-ANSI) variant with Akko AstroAim Magnetic Switch.

Key Features

• TMR Sensor — Ultra-precise 0.01mm Rapid Trigger, adjustable actuation in 0.01mm steps (0.1mm–3.4mm range)
• 32K Scanning Rate — Detects switch position changes in 0.03–0.05ms; powered by 15 dedicated logic ICs for stable high-speed performance
• 8,000Hz Polling Rate — Available in both wired and 2.4GHz wireless modes for ultra-low latency
• MagMech Compatible — Mix and match magnetic switches and any 3-pin or 5-pin mechanical switches simultaneously
• Cross-Compatible with 7 Third-Party Magnetic Switches — Select and calibrate via MonsGeek Driver

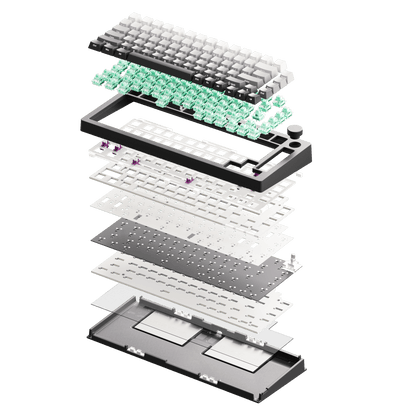

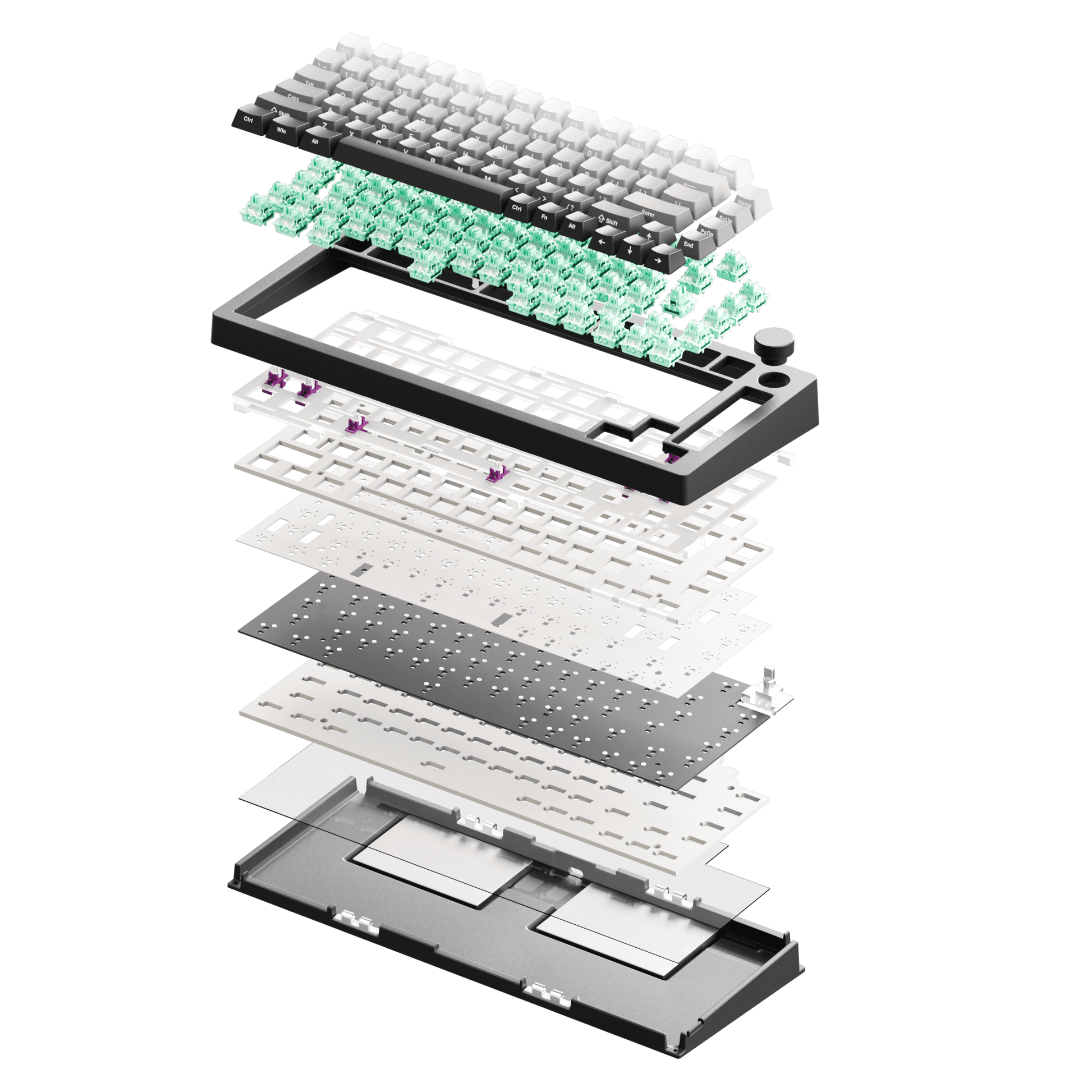

• Ball-Catch Rapid Disassembly — Tool-free push-to-lock, pull-to-release screwless case design
• ARM Cortex-M4 CPU — Enhanced processing with auto-calibration from -20°C to 80°C
• 8,000mAh Built-in Battery — Extended wireless gaming and typing without frequent recharging

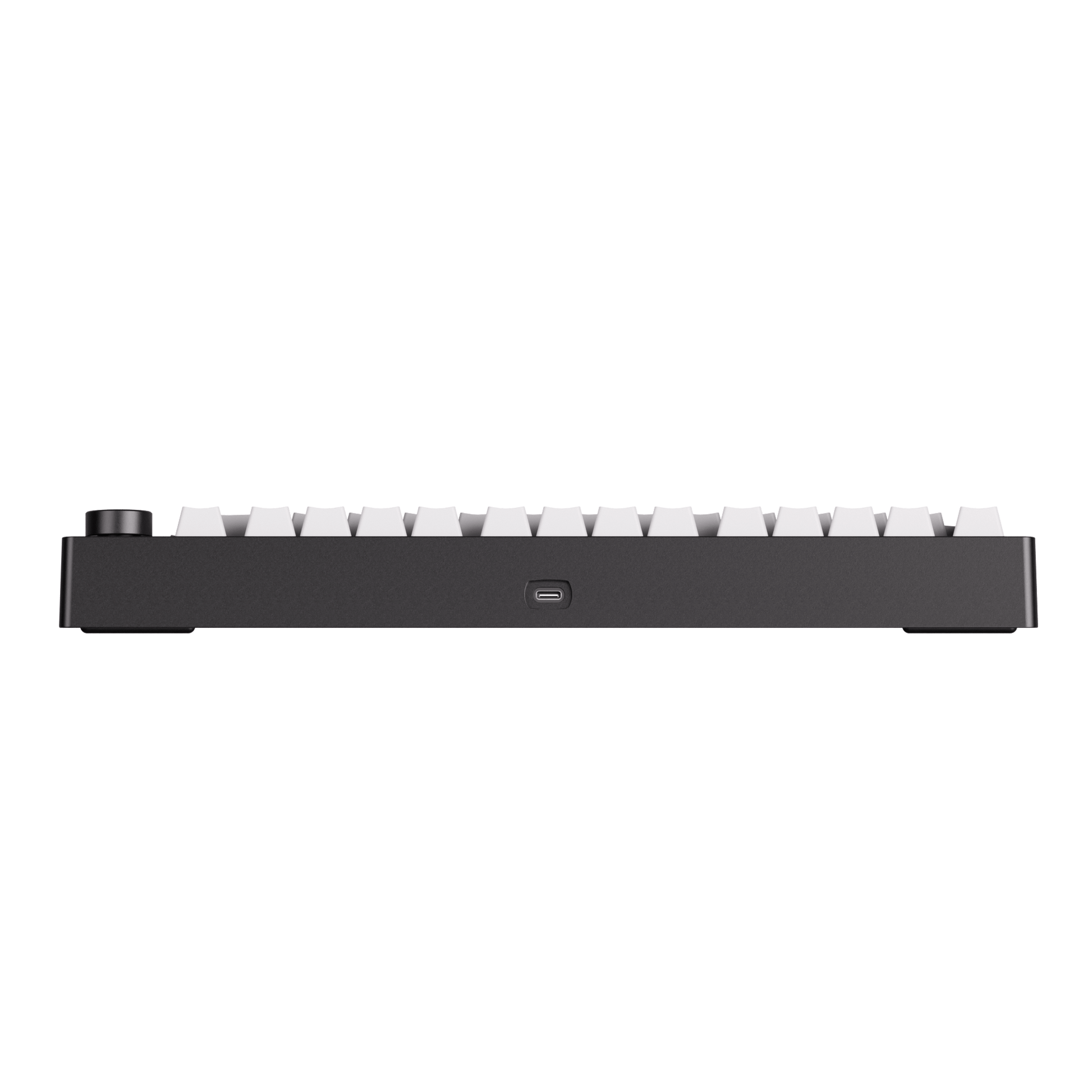

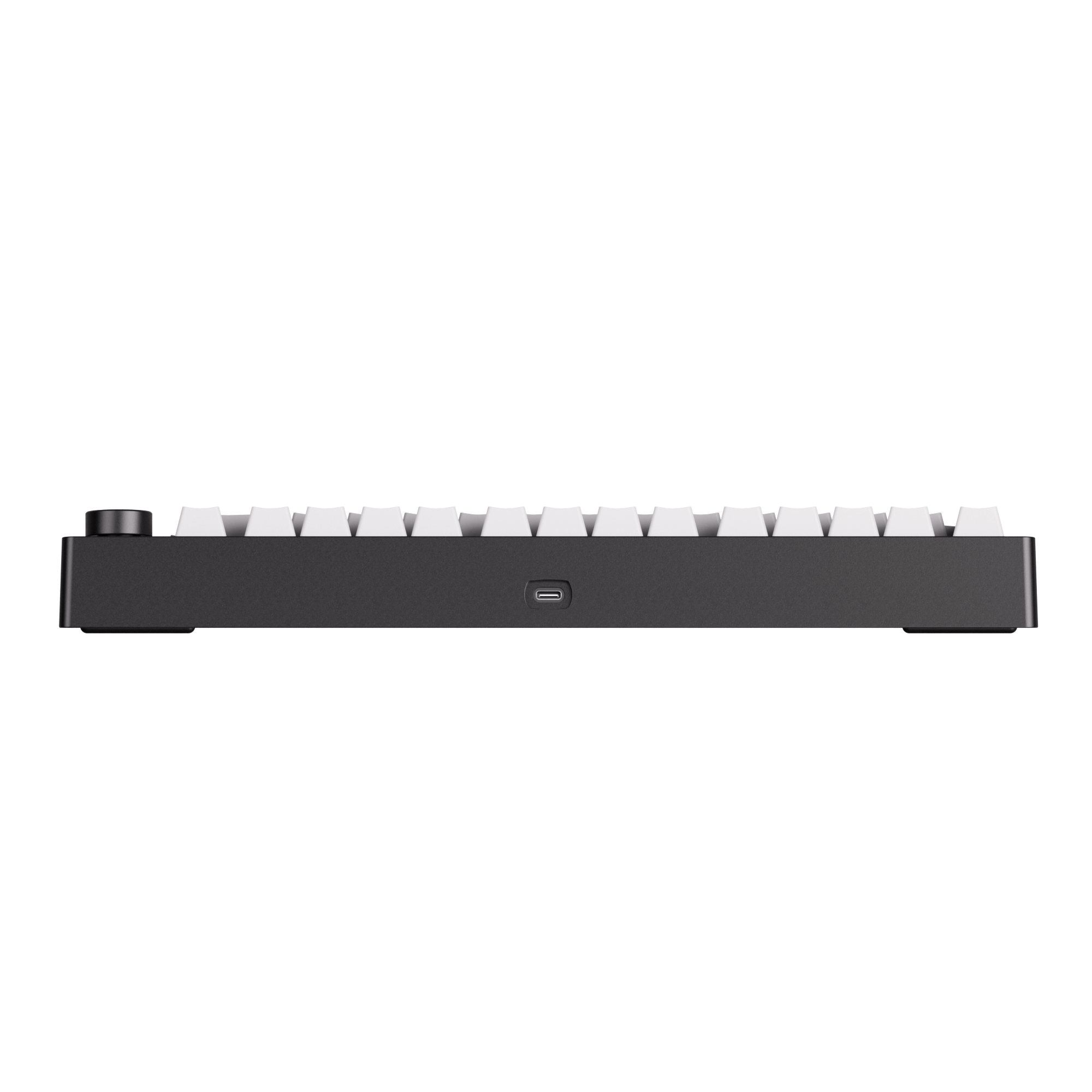

• Tri-Mode Connectivity — Bluetooth 5.0 (up to 3 devices), 2.4GHz wireless, USB Type-C wired

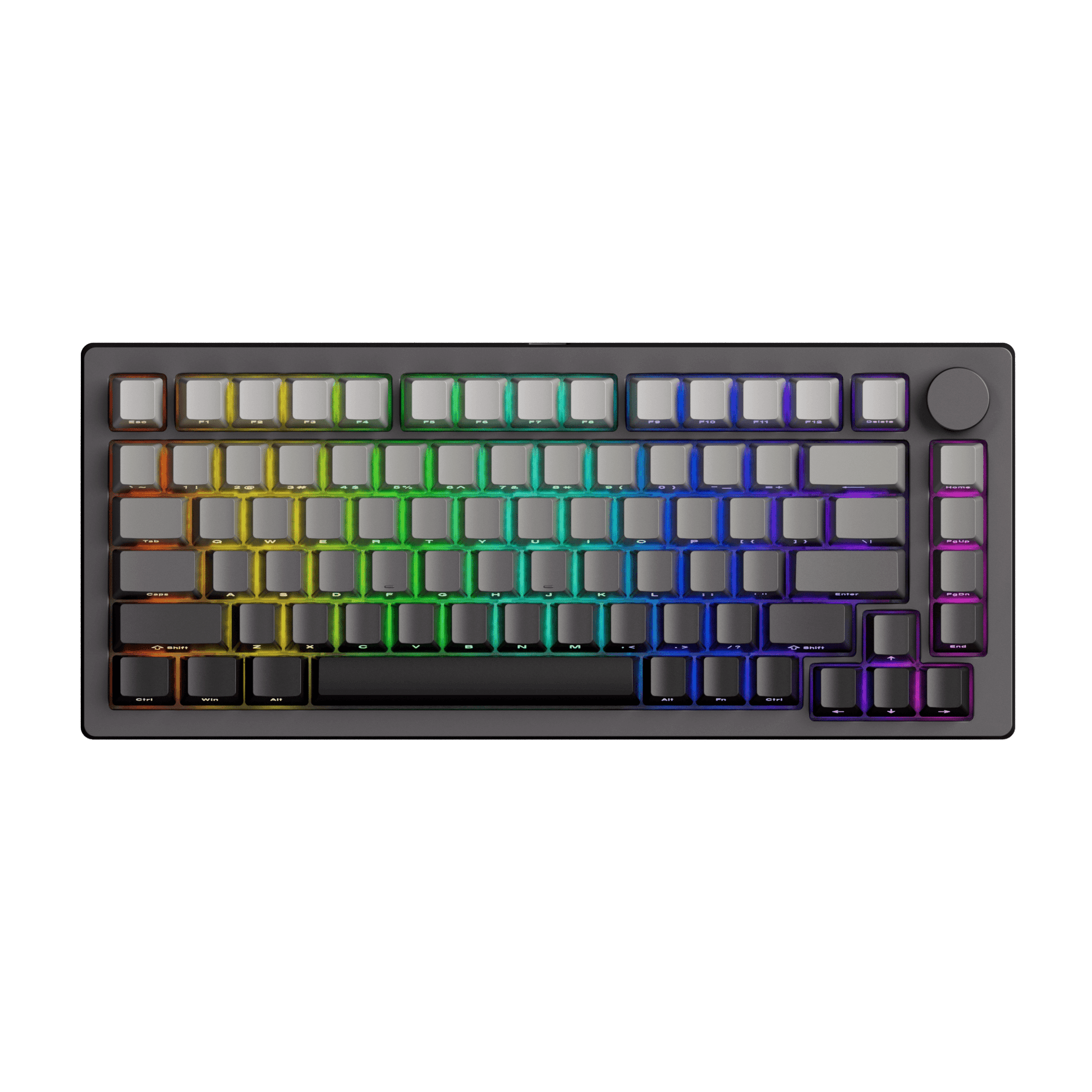

• South-facing RGB — 15+ preset backlighting effects, Alpha channel, 500Hz refresh rate, fully customizable

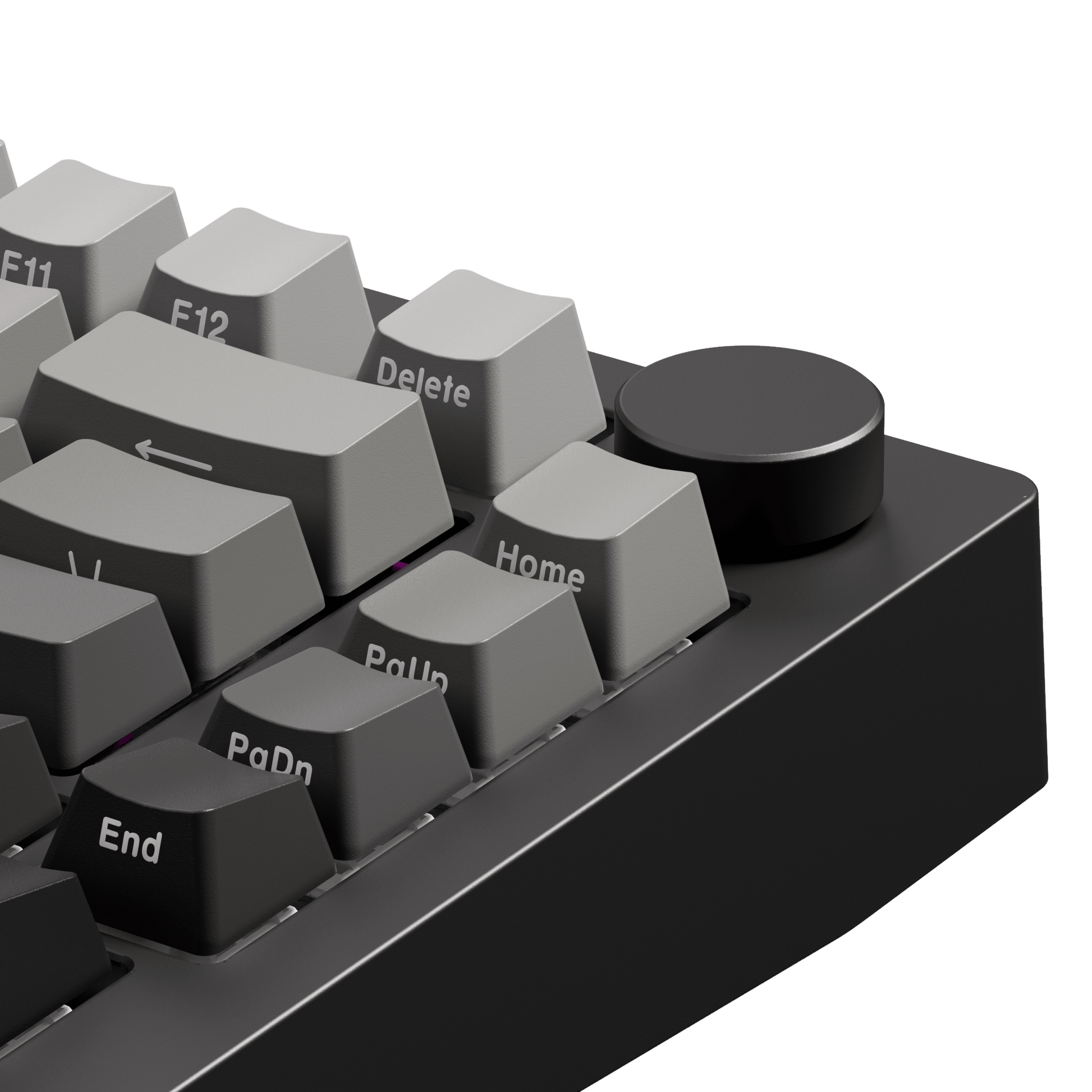

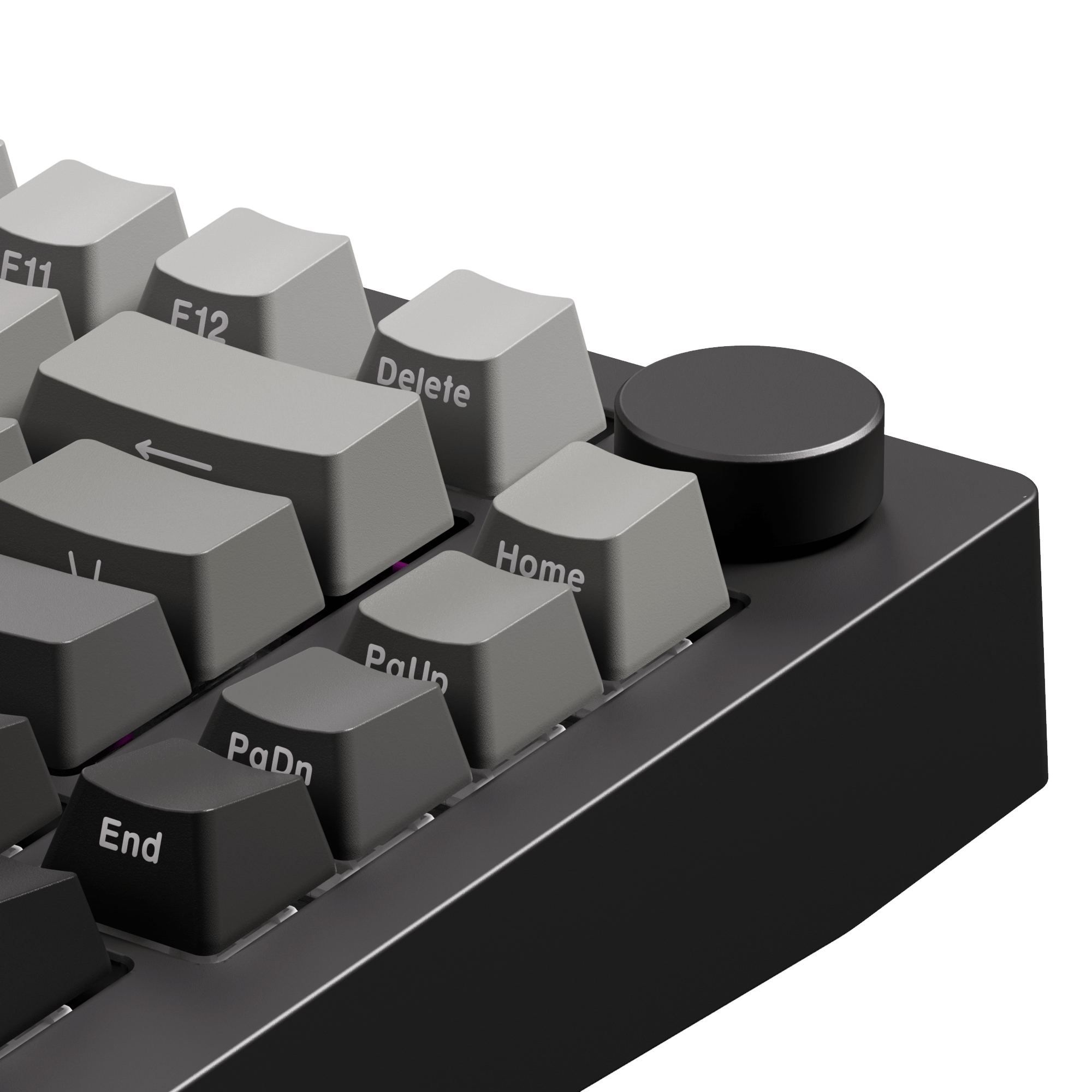

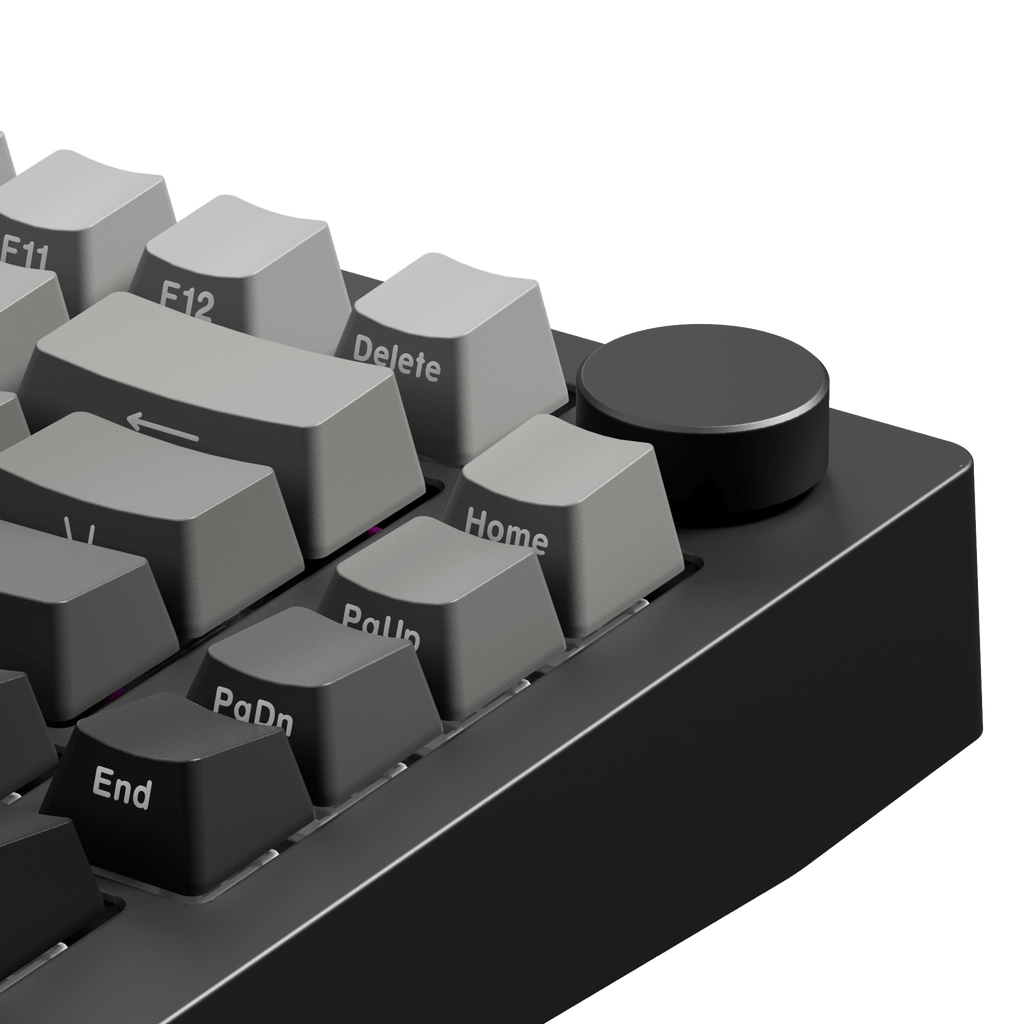

• Programmable Knob — Control volume, lighting, and more

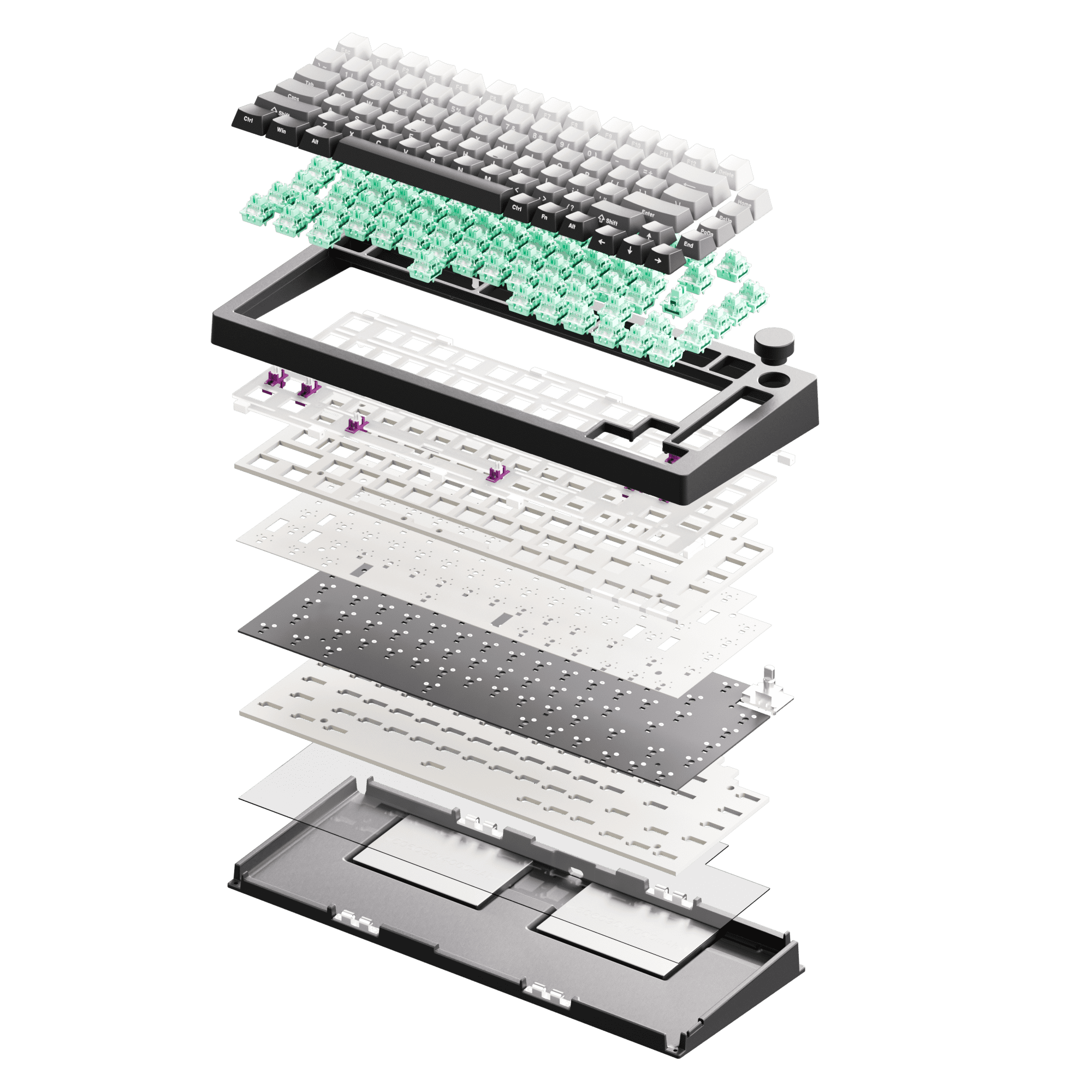

• PORON Plate Foam — Noise reduction for a purer, more comfortable sound profile

Gaming Features

• Rapid Trigger (RT) — Instant key activation/deactivation with minimal travel
• Snap Key (SOCD) — Prioritizes most recent directional input for fast FPS movement
• Dynamic Keystrokes (DKS) — Four actions per key across two press depths and two release stages
• Toggle Key (TGL) — Hold a function or trigger it repeatedly at high speed
• Mod-Tap — Dual-function keys: tap for one action, hold for another
• Adjustable Actuation Distance — Per-key adjustment from 0.1mm to 3.4mm

Akko AstroAim Magnetic Switch Specs

• Type: Linear (Magnetic)
• Total Travel: 3.5 ± 0.1mm
• Initial Force: 35gf
• End Force: 55gf
• Housing: PC top / POM stem / PA66 bottom
• LED Diffuser included

Black Gradient Variant Specifications

In the Box

Keyboard × 1, Manual × 1, USB-C Cable × 1, Keycap Puller × 1, Switch Puller × 1, Receiver × 1
